INTRODUCTION

Utilizing latest AutoCAD technology and SECON’s industry expertise, ASG-SSN provides a complete tool to prepare engineering alignment sheets drawings for Sewer and Storm water networks.

What ASG-SSN does for you

  • WYSIWYG (What You See Is What You Get) User Interface
  • Extensive security mechanisms with hardware lock and user access management features.
  • Upload data from a Comma Separated Values (CSV) file
  • Generation of Plan and Profile in model space
  • Generation of Alignment sheets in layout space
  • Layerization of Drawing Objects
  • Customization of Rendering Options
  • Facility to read and store CSV files
  • Comprehensive project Settings which includes General, Profile, Numeric bands, Template etc.
  • Plotting manhole name, levels in readable format along the pipe flow
  • Plotting the flow direction along the flow

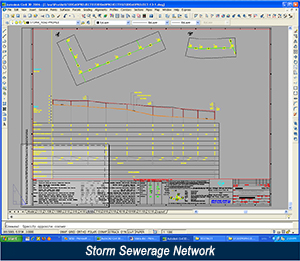

  • Plotting the corresponding plan in layout space in alignment sheet, rotating and fixing in the view port
  • Plotting the Northing easting blocks
  • Generation of ground and road profile according to sheet length
  • Generation of pipe invert profile considering the drops in manhole
  • Plotting manholes
  • Plotting the connecting manhole with their catchments, line numbers and their pipe invert levels
  • Plotting numerical bands like Ground levels, Road levels, Distance between manholes, Sewer/Storm invert level, Invert depth, Manhole numbers, Cumulative chainage, Sewer/Storm gradient, Sewer/Storm diameter-material, Ancillary, Bedding type and Line Number-Catchment
  • Facility to set the database connection

ASG - SSN Benefits

  • Significantly reduce cost, time and manpower for generation of design and drawings.
  • Database driven design for proper management and efficient storage and retrieval of drawings.
  • Intelligent user interface makes it easy to learn within a few hours.
  • Instant access to reports

Testimonial

Partnering with SECON in developing an automated alignment sheet and reporting software was extremely successful and rewarding. Not to forget the ongoing excellent, prompt and friendly customer service. We truly found in SECON a partner we can trust and our close relationship will surely carry us into the future.

Thus, we can only recommend SECON as the partner you are looking for..
Director, European Consulting Firm

Major Projects

  • NATIONAL CONSULTING BUREAU, TRIPOLI, LIBYA
  • BUIDCO
